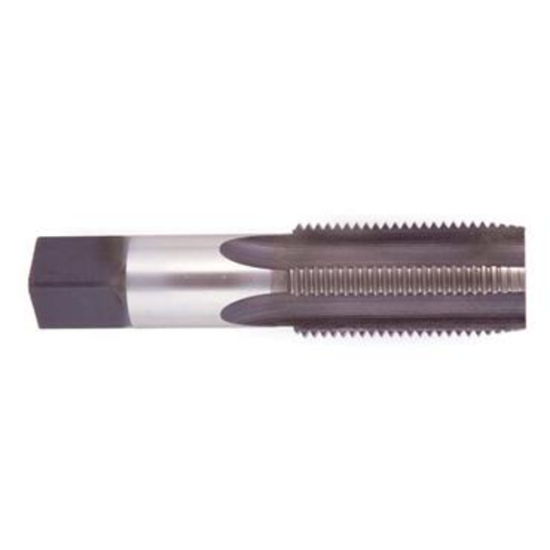

REGAL 017873AS 2-8.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG017873AS
Delivery date: 3-5 days
$219.66

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Bottom Tapping, Cut Tapping, Tapping
Made In USA Yes
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Thread Pitch 8.00TPI
Thread Type 8-Pitch
Shank/Pilot Dia 1.6440 41.76MM
Flute Direction R - Right
Drill Range 1.8701 47.50MM - 1.9024 48.32MM
Length Type Standard
Tap Style Hand Tap
Tap Type Bottoming
Thread Size 2"
Flutes/Inserts 6
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Tap Chamfer 1.0P-2.0P
Thread Limit H6/GH6
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Square 1.2330
Dimension Standard ANSI/ANSI
Overall Len 7.6250 193.68MM
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Agricultural YES
Energy Yes
