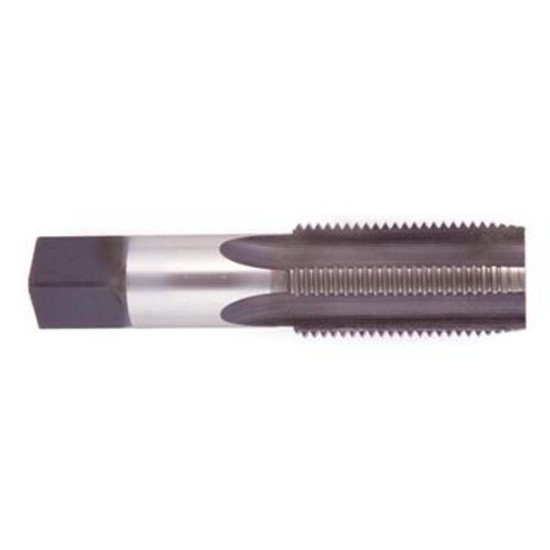

Picture of Regal 017867AS 1-3/4-8.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Regal 017867AS 1-3/4-8.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG017867AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1175773
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL 1-3/4"x8.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated H6/GH6 8-Pitch Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, Aluminum, <30HRC Steel
Overall Length 7.0000 177.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.4300 36.32MM
Flutes/Inserts 6
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 8.00TPI
Thread Type 8-Pitch
Flute Direction RIGHT
Thread Size 1-3/4"
Thread Limit H6/GH6
Tap Style Hand Tap
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 1.6201 41.15MM - 1.6524 41.97MM
Tap Square 1.0720
Tap Chamfer 1.0P-2.0P
