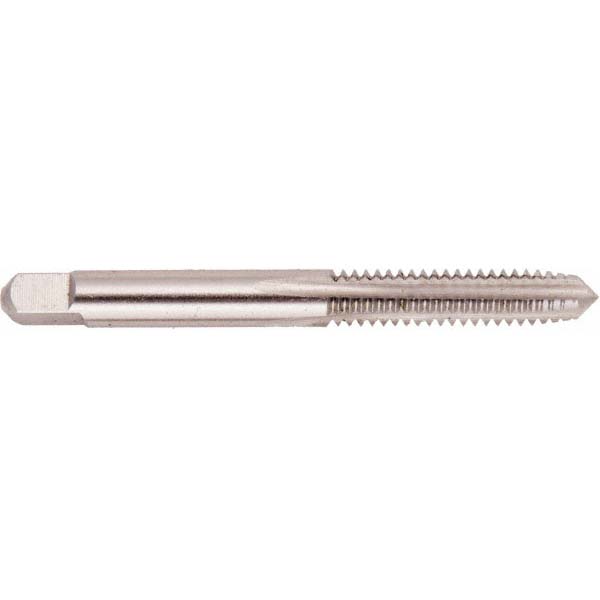

Picture of Regal 017217AS 7/16-20.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Regal 017217AS 7/16-20.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Part Number: REG017217AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$17.49
SKU: 1175585

Description

REGAL 7/16"x20.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NF/UNF/UNEF
Flute Direction LEFT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 3.1560 80.16MM
Shank/Pilot Dia 0.3230 8.20MM - P
Flutes/Inserts 4
Thread Pitch 20.00TPI
Thread Size 7/16"
Tap Drill Range 0.3854 9.79MM - 0.3984 10.12MM
Tap Square 0.2420
Performance & Capacity
Cut Rating Aluminum, <25HRC Steel, Brass, Stainless Steel, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
