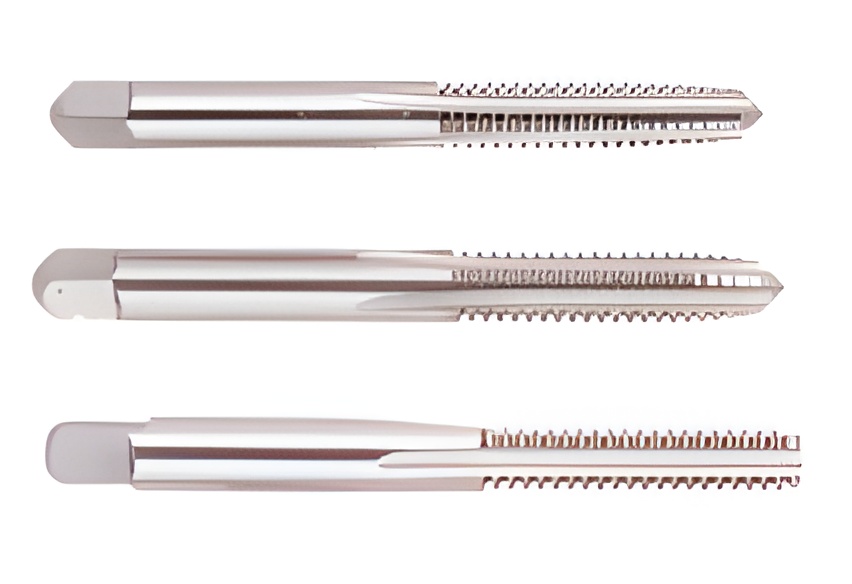

Picture of Regal 017110AS 1/4-20.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Regal 017110AS 1/4-20.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated

Part Number: REG017110AS
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1175563
Vendor: Sussex Tool and Supply
$7.37

Description

REGAL 1/4"x20.00TPI Hand Tap Taper 7.0P-10.0P HSS Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction LEFT
Tap Style Hand Tap
Tap Type Taper
Tap Chamfer 7.0P-10.0P
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2550 6.48MM
Flutes/Inserts 4
Thread Pitch 20.00TPI
Thread Size 1/4"
Tap Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1910
Performance & Capacity
Cut Rating Aluminum, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
