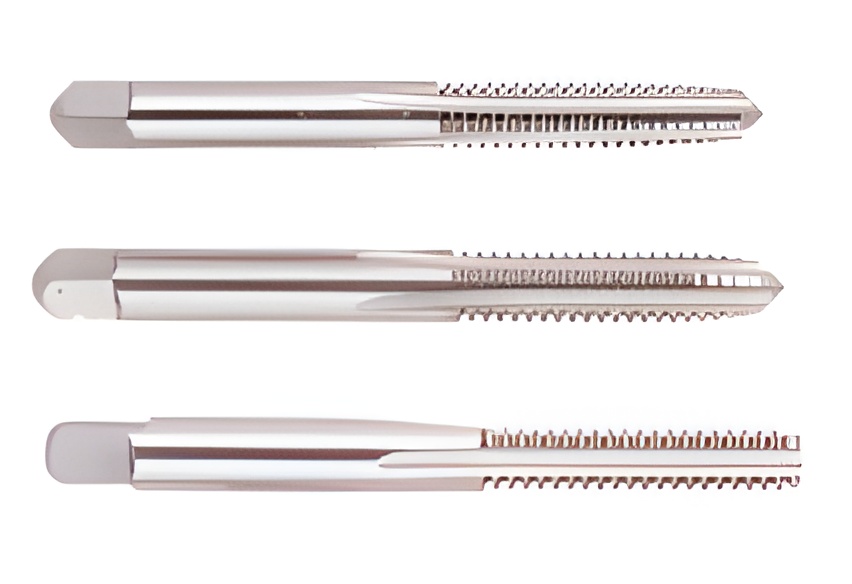

Picture of Regal 017054AS No.8-32.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Regal 017054AS No.8-32.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated

Part Number: REG017054AS
Looking for alternatives…
Find a drill for this tap No.8 × 32.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1175556
Vendor: Sussex Tool and Supply
$7.45

Description

REGAL No.8x32.00TPI Hand Tap Bottoming 1.0P-2.0P HSS Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction LEFT
Tap Style Hand Tap
Tap Type Bottoming
Tap Chamfer 1.0P-2.0P
Dimensions & Sizing
Overall Length 2.1250 53.98MM
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 4
Thread Pitch 32.00TPI
Thread Size No.8
Tap Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Square 0.1310
Performance & Capacity
Cut Rating Aluminum, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
