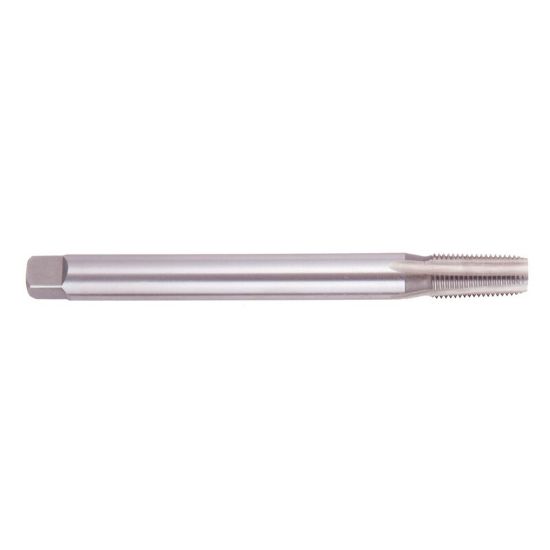

REGAL 015922AS 3/8-18.00TPI Pipe Extra Long Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015922AS
Delivery date: 3-5 days
$110.43

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Tapping, Extra Long Pipe
Package Size 1
Performance Rating General Performance
Made In USA Yes
Shipping State Illinois
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Flutes/Inserts 4
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Overall Len 8.0000 203.20MM
Drill Range 0.5622 14.28MM
Tap Square 0.5310
Thread Size 3/8"
Thread Pitch 18.00TPI
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Length Type Long
Shank/Pilot Dia 0.7000 17.78MM
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tool Material Steel
Tap Style Pipe Extra Long
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Energy Yes
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
