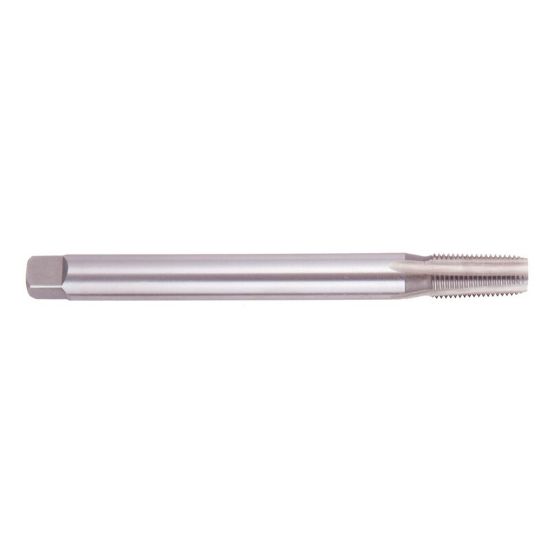

REGAL 015900AS 1/16-27.00TPI Pipe Extra Long Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015900AS
Delivery date: 3-5 days
$22.61

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Extra Long Pipe
Performance Rating General Performance
Package Size 1
Shipping State Illinois
Made In USA Yes
Dimensional Specifications
Thread Pitch 27.00TPI
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 6.0000 152.40MM
Tap Type Pipe
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Flutes/Inserts 4
Drill Range 0.2417 6.14MM
Length Type Long
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Thread Size 1/16"
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Tool Material Steel
Tap Square 0.2340
Tap Style Pipe Extra Long
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
