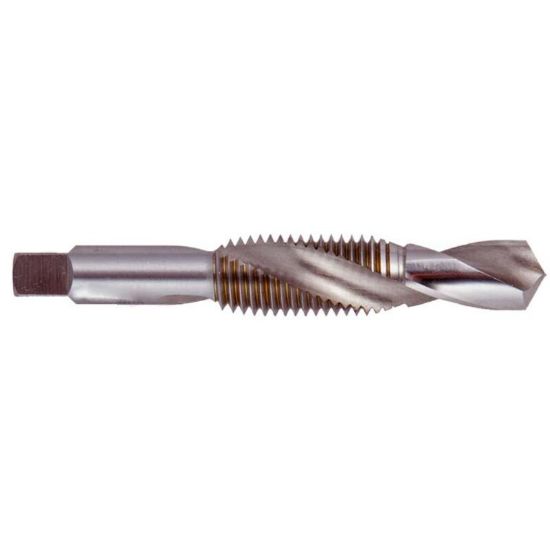

REGAL 015848AS 3/4-10.00TPI Drill & Tap HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015848AS
Delivery date: 3-5 days
$139.71

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Drill Tap Comb, Tapping
Made In USA Yes
Performance Rating General Performance
Shipping State Illinois
Dimensional Specifications
Thread Type NC/UNC
Thread Limit H3/GH3
Flutes/Inserts 4
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Cut Rating <25HRC Steel, Aluminium, Brass, Grey Iron, Stainless Steel
Tool Material Steel
Thread Size 3/4"
Shank/Pilot Dia 0.5900 14.99MM
Overall Len 6.0000 152.40MM
Thread Pitch 10.00TPI
Dimension Standard ANSI/ANSI
Tap Style Drill & Tap
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
