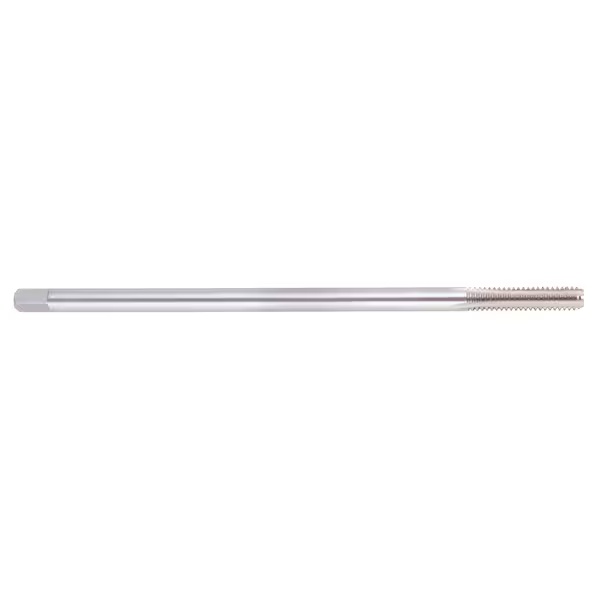

Picture of Regal 015203AS 1/2-13.00TPI Cut Spiral Point Plug 1.0P-2.0P HSS Uncoated Pulley Long

Regal 015203AS 1/2-13.00TPI Cut Spiral Point Plug 1.0P-2.0P HSS Uncoated Pulley Long

Part Number: REG015203AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1175819
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL 1/2"x13.00TPI Cut Spiral Point Plug 1.0P-2.0P HSS Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, Aluminum, <30HRC Steel
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type LONG
Performance Rating General Performance
Thread Pitch 13.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1/2"
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Square 0.2750
Tap Chamfer 1.0P-2.0P
