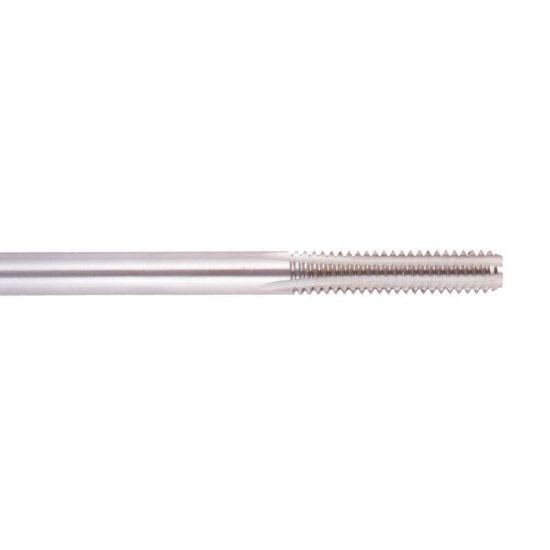

REGAL 015200AS 1/4-20.00TPI Cut Spiral Point Plug 1.0P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015200AS
Delivery date: 3-5 days
$19.47

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Made In USA Yes
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Thread Size 1/4"
Tap Type Plug
Flute Direction R - Right
Thread Pitch 20.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Flutes/Inserts 4
Length Type Long
Tap Chamfer 1.0P-2.0P
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.2550 6.48MM
Overall Len 6.0000 152.40MM
Tap Style Cut Spiral Point
Dimension Standard ANSI/ANSI
Drill Range 0.1976 5.02MM - 0.2106 5.35MM
Tap Square 0.1910
Tool Material Steel
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
