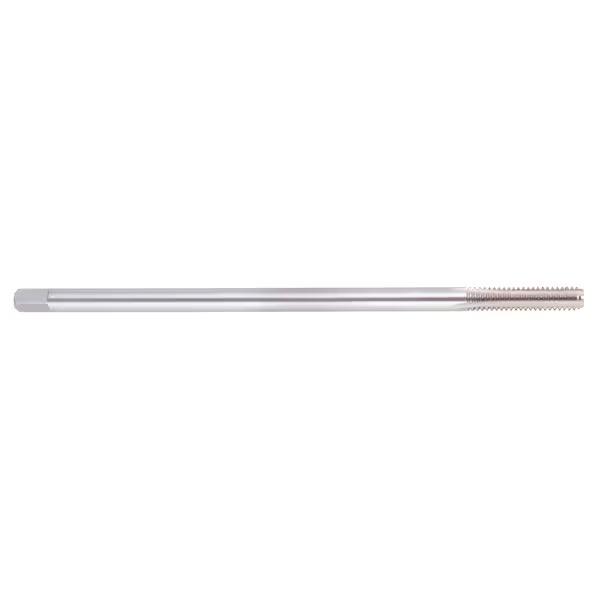

Picture of Regal 015182AS 5/8-18.00TPI Cut Straight Flute Bottoming 1.0P-2.0P HSS Uncoated Pulley Long

Regal 015182AS 5/8-18.00TPI Cut Straight Flute Bottoming 1.0P-2.0P HSS Uncoated Pulley Long

Part Number: REG015182AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1175877
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL 5/8"x18.00TPI Cut Straight Flute Bottoming 1.0P-2.0P HSS Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, Aluminum, <30HRC Steel
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type LONG
Performance Rating General Performance
Thread Pitch 18.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 5/8"
Thread Limit H3/GH3
Tap Style Cut Straight Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5669 14.40MM - 0.5815 14.77MM
Tap Square 0.3600
Tap Chamfer 1.0P-2.0P
