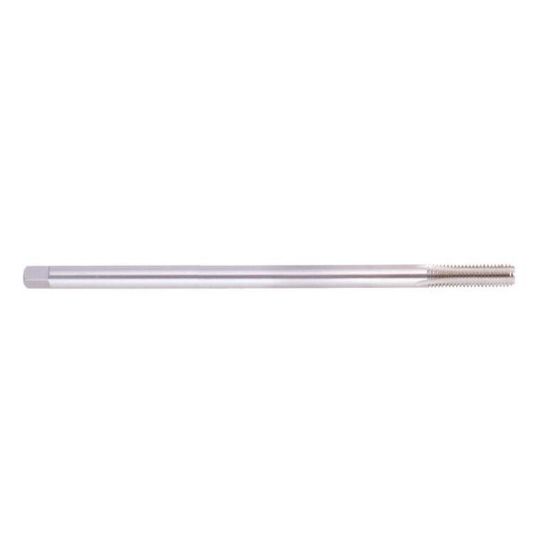

REGAL 015174AS 1-1/4-7.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015174AS
Delivery date: 3-5 days
$307.44

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Chamfer 4.0P-5.0P
Flute Direction R - Right
Thread Pitch 7.00TPI
Overall Len 10.0000 254.00MM
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Square 0.7660
Tool Material Steel
Flutes/Inserts 5
Thread Type NC/UNC
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Length Type Long
Shank/Pilot Dia 1.0210 25.93MM
Drill Range 1.1012 27.97MM - 1.1386 28.92MM
Thread Size 1-1/4"
Thread Limit H4/GH4
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
