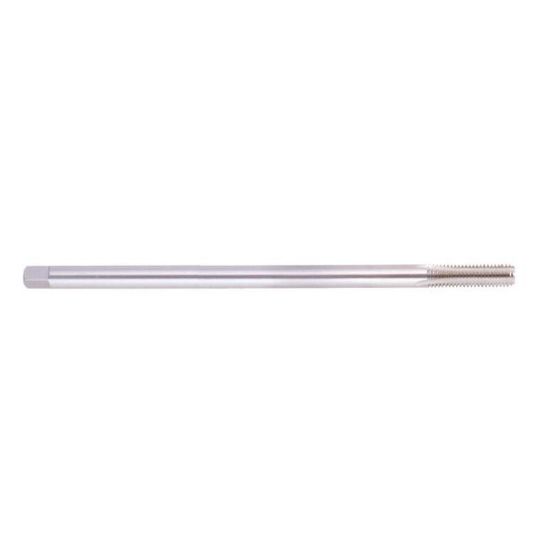

REGAL 015173AS 5/8-11.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015173AS
Delivery date: 3-5 days
$136.37

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Package Size 1
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Flute Direction R - Right
Thread Pitch 11.00TPI
Shank/Pilot Dia 0.4800 12.19MM
Tap Chamfer 4.0P-5.0P
Thread Type NC/UNC
Thread Limit H3/GH3
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Flutes/Inserts 4
Length Type Long
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Dimension Standard ANSI/ANSI
Thread Size 5/8"
Overall Len 10.0000 254.00MM
Tap Type Plug
Tool Material Steel
Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Automotive Yes
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
