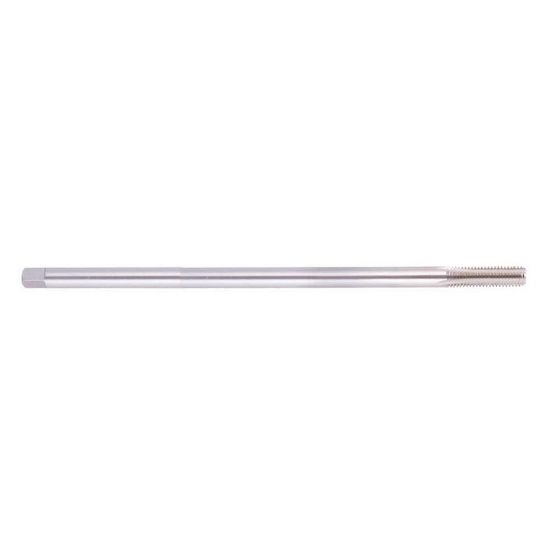

Picture of Regal 015168AS 1-1/4-8.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated Pulley Long

Regal 015168AS 1-1/4-8.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated Pulley Long

Part Number: REG015168AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1175913
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL 1-1/4"x8.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated H5/GH5 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, Aluminum, <30HRC Steel
Overall Length 12.0000 304.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 1.0200 25.91MM
Flutes/Inserts 6
Type Of Tool Tap
Length Type LONG
Performance Rating General Performance
Thread Pitch 8.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 1-1/4"
Thread Limit H5/GH5
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 1.1201 28.45MM - 1.1524 29.27MM
Tap Square 0.7630
Tap Chamfer 4.0P-5.0P
