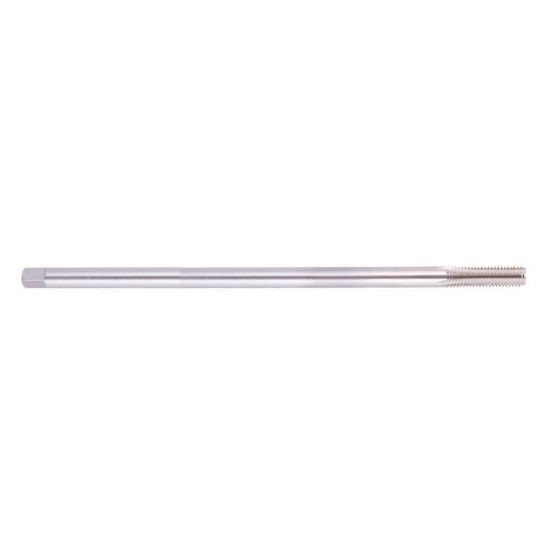

Picture of Regal 015167AS 1-8.00TPI Cut Straight Flute Bottoming 1.0P-2.0P HSS Uncoated Pulley Long

Regal 015167AS 1-8.00TPI Cut Straight Flute Bottoming 1.0P-2.0P HSS Uncoated Pulley Long

Part Number: REG015167AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1175911
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL 1"x8.00TPI Cut Straight Flute Bottoming 1.0P-2.0P HSS Uncoated H4/GH4 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, Aluminum, <30HRC Steel
Overall Length 12.0000 304.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.8000 20.32MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type LONG
Performance Rating General Performance
Thread Pitch 8.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1"
Thread Limit H4/GH4
Tap Style Cut Straight Flute
Tap Type Bottoming
Dimension Standard ANSI/ANSI
Tap Drill Range 0.8701 22.10MM - 0.9024 22.92MM
Tap Square 0.6000
Tap Chamfer 1.0P-2.0P
