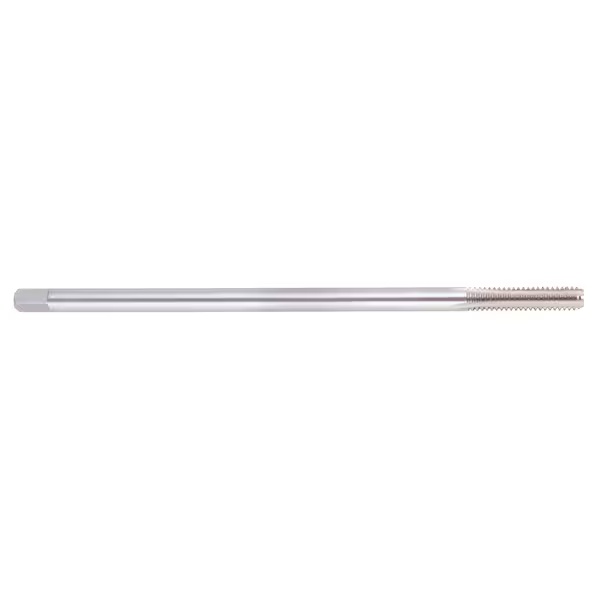

Picture of Regal 015160AS 5/8-11.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated Pulley Long

Regal 015160AS 5/8-11.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated Pulley Long

Part Number: REG015160AS
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1175874
Vendor: Sussex Tool and Supply
$102.35

Description

REGAL 5/8"x11.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Cut Rating Gray Iron, Aluminum, <30HRC Steel
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.4800 12.19MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type LONG
Performance Rating General Performance
Thread Pitch 11.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 5/8"
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5303 13.47MM - 0.5539 14.07MM
Tap Square 0.3600
Tap Chamfer 4.0P-5.0P
