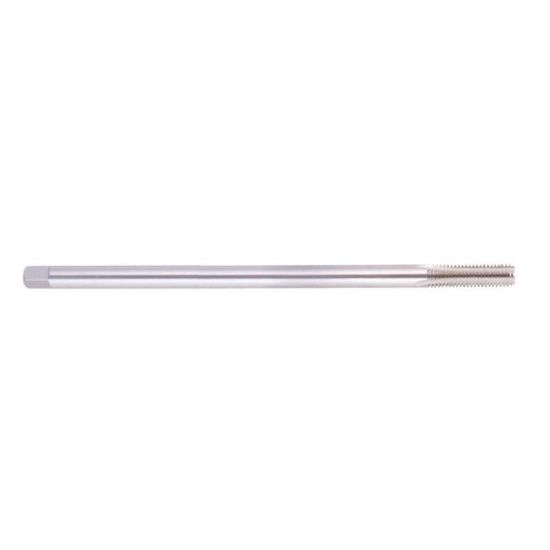

REGAL 015151AS 1/2-13.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015151AS
Delivery date: 3-5 days
$94.46

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Cut Tapping, Plug Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Made In USA Yes
Shipping State Illinois
Dimensional Specifications
Tap Style Cut Spiral Point
Thread Pitch 13.00TPI
Thread Type NC/UNC
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Flutes/Inserts 4
Length Type Long
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 10.0000 254.00MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Type Plug
Thread Limit H3/GH3
Flute Direction R - Right
Thread Size 1/2"
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
