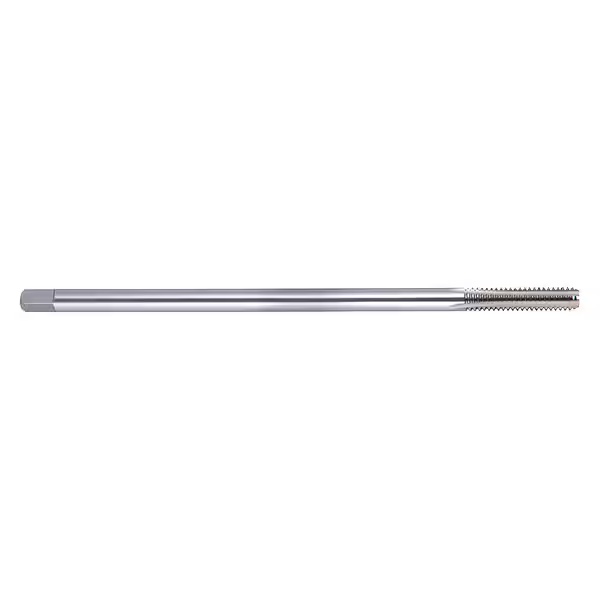

Picture of Regal 015151AS 1/2-13.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated Pulley Long

Regal 015151AS 1/2-13.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated Pulley Long

Part Number: REG015151AS
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1175896
Vendor: Sussex Tool and Supply
$104.57

Description

REGAL 1/2"x13.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Cut Rating Gray Iron, Aluminum, <30HRC Steel
Overall Length 10.0000 254.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3670 9.32MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type LONG
Performance Rating General Performance
Thread Pitch 13.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 1/2"
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Square 0.2750
Tap Chamfer 4.0P-5.0P
