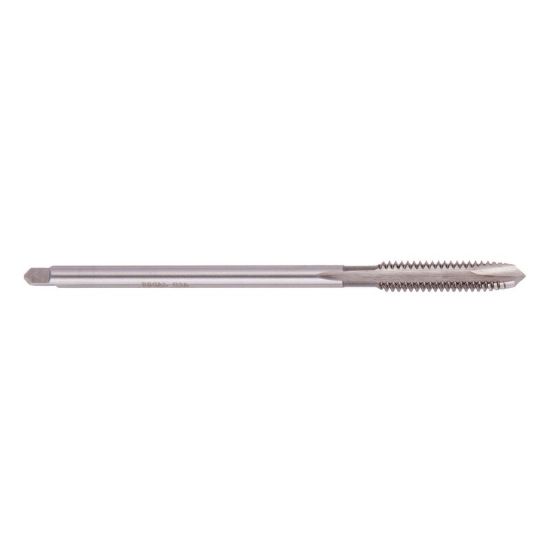

REGAL 015128AS 5/16-18.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015128AS
Delivery date: 3-5 days
$33.30

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Cut Tapping, Tapping, Through Hole Tapping, Plug Tapping
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Flutes/Inserts 2
Length Type Long
Drill Range 0.2547 6.47MM - 0.2689 6.83MM
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Overall Len 6.0000 152.40MM
Tap Square 0.2380
Tap Type Plug
Dimension Standard ANSI/ANSI
Thread Size 5/16"
Tool Material Steel
Shank/Pilot Dia 0.3180 8.08MM
Thread Pitch 18.00TPI
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
