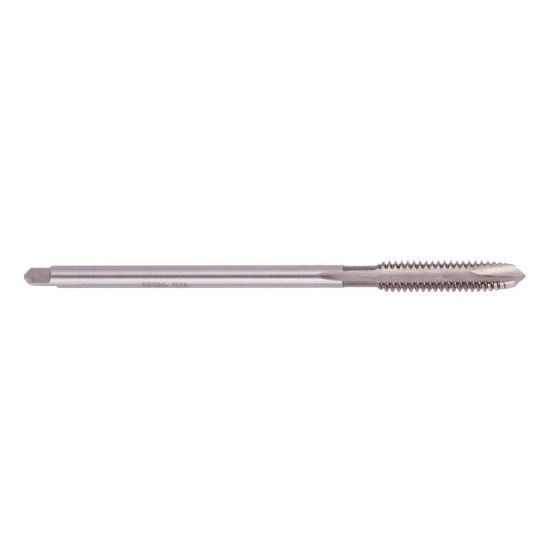

REGAL 015126AS 1/4-28.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015126AS
Delivery date: 3-5 days
$32.61

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Thread Size 1/4"
Tap Type Plug
Thread Pitch 28.00TPI
Machine Side Connection Type Tap Collet
Tap Square 0.1910
Tap Chamfer 4.0P-5.0P
Shank/Pilot Dia 0.2550 6.48MM
Overall Len 6.0000 152.40MM
Tap Style Cut Spiral Point
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Flutes/Inserts 2
Length Type Long
Tool Material Steel
Drill Range 0.2244 5.70MM - 0.2220 5.64MM
Thread Limit H3/GH3
Flute Direction R - Right
Thread Type NF/UNF/UNEF
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
