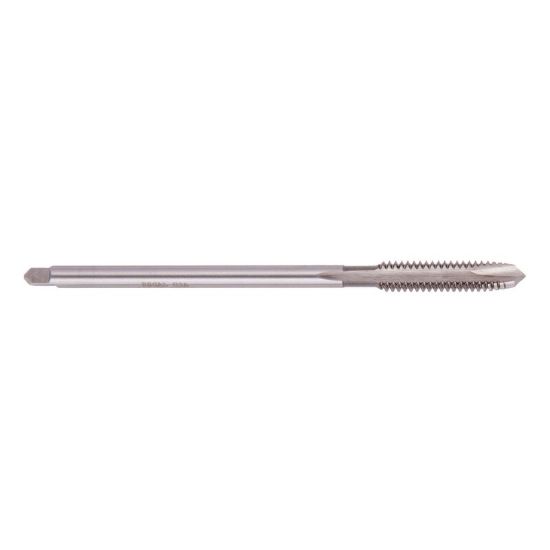

REGAL 015110AS No.10-24.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015110AS
Delivery date: 3-5 days
$36.57

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Made In USA Yes
Dimensional Specifications
Tap Square 0.1520
Tap Type Plug
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Tap Chamfer 4.0P-5.0P
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Tool Material Steel
Thread Size No.10
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Shank/Pilot Dia 0.1940 4.93MM
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 2
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Long
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Mold Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
