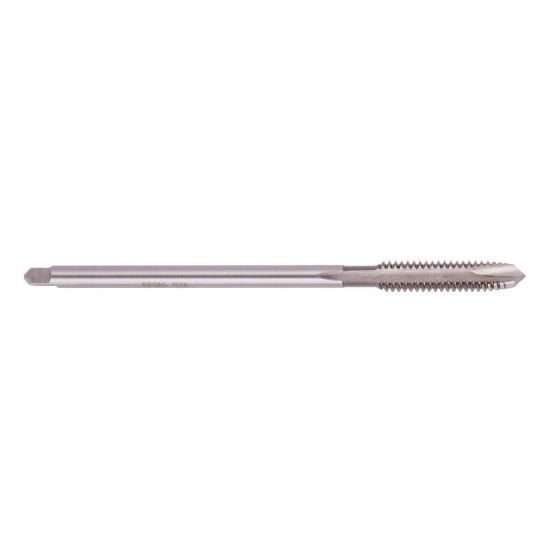

REGAL 015103AS No.8-32.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015103AS
Delivery date: 3-5 days
$20.67

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Illinois
Performance Rating General Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Chamfer 4.0P-5.0P
Tap Type Plug
Thread Limit H3/GH3
Flute Direction R - Right
Shank/Pilot Dia 0.1680 4.27MM
Tap Square 0.1310
Thread Type NC/UNC
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Flutes/Inserts 2
Length Type Long
Tool Material Steel
Thread Pitch 32.00TPI
Dimension Standard ANSI/ANSI
Thread Size No.8
Overall Len 6.0000 152.40MM
Tap Style Cut Spiral Point
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
