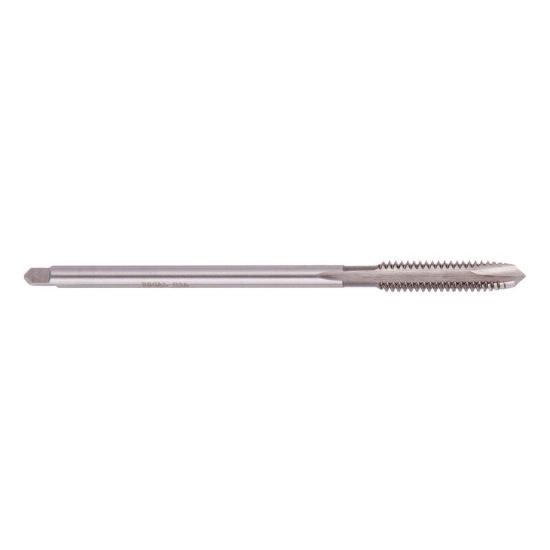

REGAL 015078AS 1/2-13.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015078AS
Delivery date: 3-5 days
$73.50

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Made In USA Yes
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Overall Len 8.0000 203.20MM
Tap Square 0.2750
Tap Style Cut Spiral Point
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Long
Shank/Pilot Dia 0.3670 9.32MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Tap Type Plug
Dimension Standard ANSI/ANSI
Flutes/Inserts 3
Tool Material Steel
Thread Size 1/2"
Thread Pitch 13.00TPI
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Tap Chamfer 4.0P-5.0P
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
