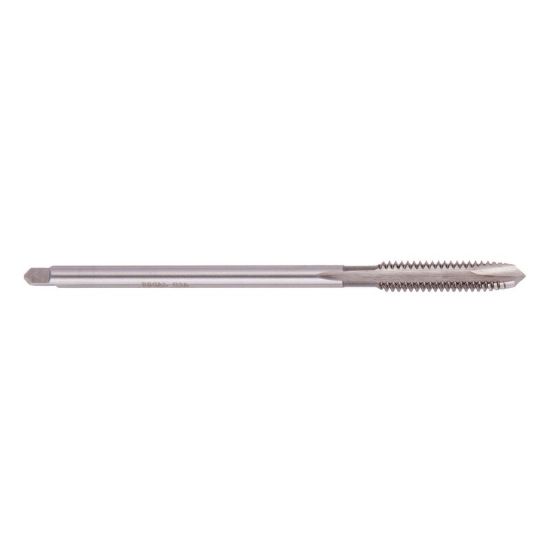

REGAL 015076AS 3/8-16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015076AS
Delivery date: 3-5 days
$36.97

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Illinois
Performance Rating General Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Shank/Pilot Dia 0.3810 9.68MM
Length Type Long
Machine Side Connection Type Tap Collet
Overall Len 8.0000 203.20MM
Tap Style Cut Spiral Point
Tap Chamfer 4.0P-5.0P
Flutes/Inserts 3
Tool Material Steel
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Type Plug
Thread Size 3/8"
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Tap Square 0.2860
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
