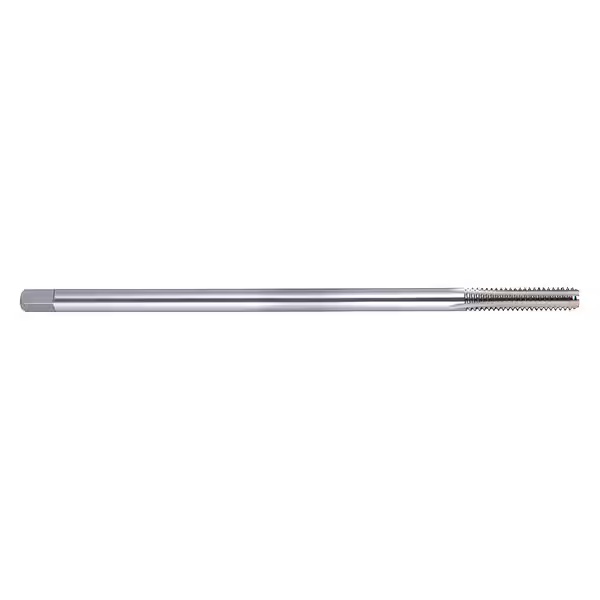

Picture of Regal 015074AS 3/4-16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated Pulley Long

Regal 015074AS 3/4-16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated Pulley Long

Part Number: REG015074AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1175961
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL 3/4"x16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, Aluminum, <30HRC Steel
Overall Length 6.0000 152.40MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type LONG
Performance Rating General Performance
Thread Pitch 16.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size 3/4"
Thread Limit H3/GH3
Tap Style Cut Spiral Point
Tap Type Plug
Dimension Standard ANSI/ANSI
Tap Drill Range 0.6850 17.40MM - 0.7012 17.81MM
Tap Square 0.4420
Tap Chamfer 4.0P-5.0P
