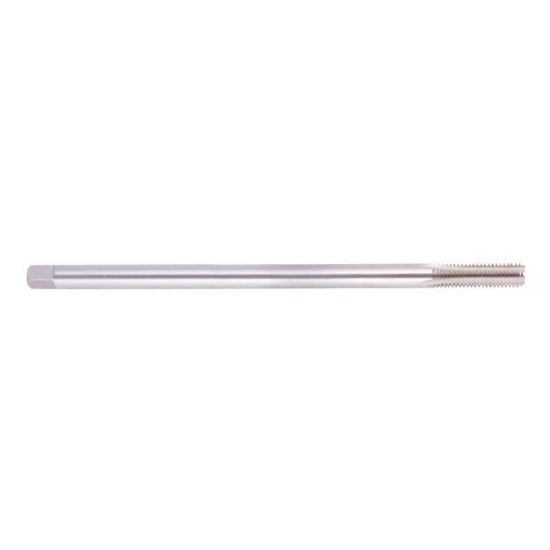

REGAL 015069AS 3/8-16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG015069AS
Delivery date: 3-5 days
$32.07

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Cut Tapping, Plug Tapping, Tapping
Shipping State Illinois
Package Size 1
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Tool Material Steel
Thread Size 3/8"
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Tap Square 0.2860
Dimension Standard ANSI/ANSI
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Thread Pitch 16.00TPI
Tap Type Plug
Machine Side Connection Type Tap Collet
Overall Len 8.0000 203.20MM
Tap Style Cut Spiral Point
Tap Chamfer 4.0P-5.0P
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 4
Length Type Long
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Energy Yes
