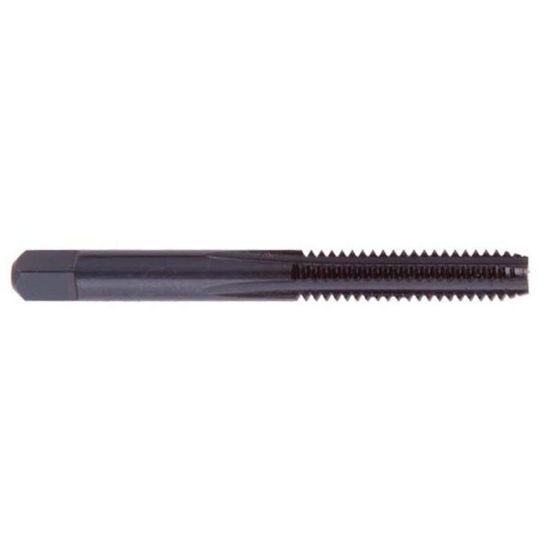

REGAL 012267AS 3/4-10.00TPI Cut Straight Flute Mod Bottom 2.5P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG012267AS
Delivery date: 3-5 days
$50.67

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating General Performance
Package Size 1
Coating Steam Oxide
Made In USA Yes
Shipping State Illinois
Dimensional Specifications
Tap Chamfer 2.5P
Thread Size 3/4"
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.5900 14.99MM
Thread Type NC/UNC
Overall Len 4.2500 107.95MM
Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Cut Rating Ductile Iron, Gray Iron
Thread Pitch 10.00TPI
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Square 0.4420
Tap Type Mod Bottom
Tap Style Cut Straight Flute
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
