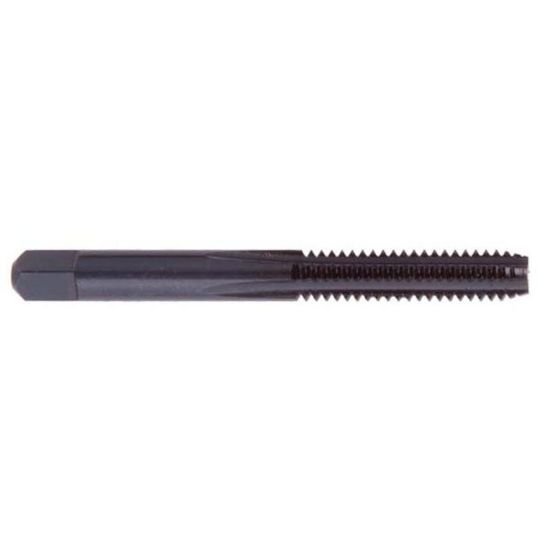

Picture of Regal 012267AS 3/4-10.00TPI Cut Straight Flute Mod Bottom 2.5P HSS Steam Oxide

Regal 012267AS 3/4-10.00TPI Cut Straight Flute Mod Bottom 2.5P HSS Steam Oxide

Part Number: REG012267AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176008
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL 3/4"x10.00TPI Cut Straight Flute Mod Bottom 2.5P HSS Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, Ductile Iron
Coating Steam Oxide
Overall Length 4.2500 107.95MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5900 14.99MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 10.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size 3/4"
Thread Limit H3/GH3
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.6461 16.41MM - 0.6720 17.07MM
Tap Square 0.4420
Tap Chamfer 2.5P
