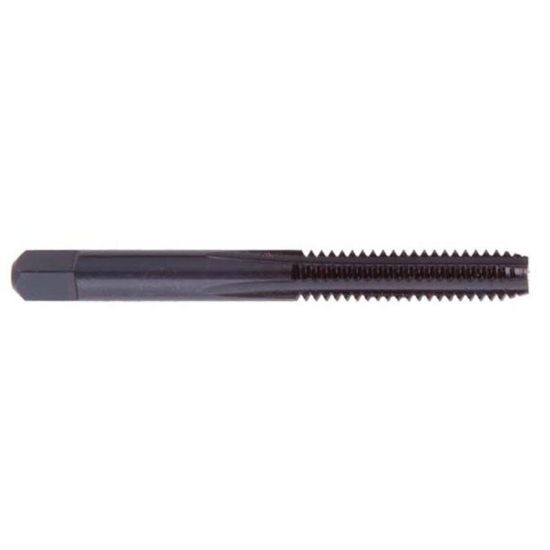

REGAL 011869AS 3/8-16.00TPI Cut Straight Flute Mod Bottom 2.5P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG011869AS
Delivery date: 3-5 days
$11.04

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Cut Tapping, Tapping
Shipping State Illinois
Performance Rating General Performance
Made In USA Yes
Coating Steam Oxide
Package Size 1
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Style Cut Straight Flute
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Shank/Pilot Dia 0.3810 9.68MM
Overall Len 2.9370 74.60MM
Flutes/Inserts 4
Length Type Standard
Tool Material Steel
Thread Pitch 16.00TPI
Dimension Standard ANSI/ANSI
Tap Chamfer 2.5P
Cut Rating Ductile Iron, Gray Iron
Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Thread Size 3/8"
Tap Square 0.2860
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Agricultural YES
