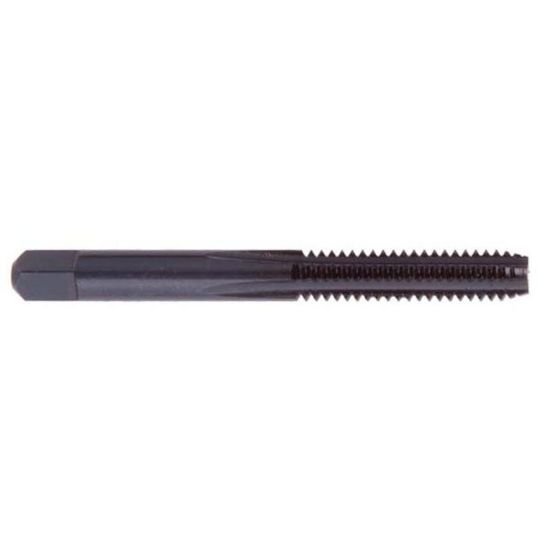

Picture of Regal 011869AS 3/8-16.00TPI Cut Straight Flute Mod Bottom 2.5P HSS Steam Oxide

Regal 011869AS 3/8-16.00TPI Cut Straight Flute Mod Bottom 2.5P HSS Steam Oxide

Part Number: REG011869AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1176004

Description

REGAL 3/8"x16.00TPI Cut Straight Flute Mod Bottom 2.5P HSS Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Tap Chamfer 2.5P
Dimensions & Sizing
Overall Length 2.9370 74.60MM
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 4
Thread Pitch 16.00TPI
Thread Size 3/8"
Tap Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2860
Performance & Capacity
Cut Rating Gray Iron, Ductile Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Coating Steam Oxide
Standards & Identification
Dimension Standard ANSI/ANSI
