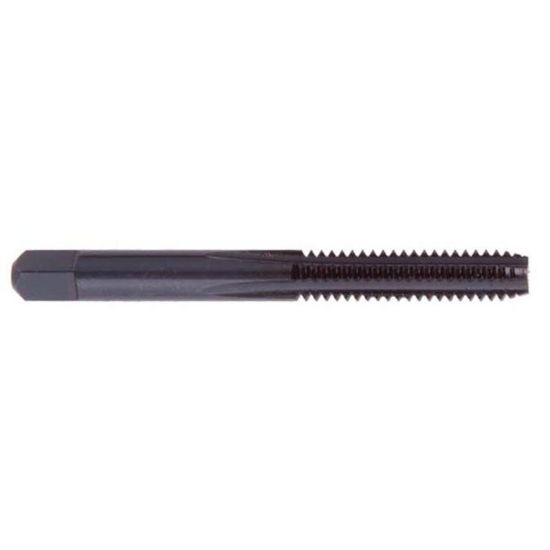

REGAL 011530AS No.10-24.00TPI Cut Straight Flute Mod Bottom 2.5P HSS Steam Oxide

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG011530AS
Delivery date: 3-5 days
$5.60

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.

Products specifications
Attribute name Attribute value
General Product Information
Application Blind Hole Tapping, Mod Bottom Tapping, Cut Tapping, Tapping
Made In USA Yes
Coating Steam Oxide
Performance Rating General Performance
Package Size 1
Shipping State Illinois
Dimensional Specifications
Tap Square 0.1520
Thread Pitch 24.00TPI
Dimension Standard ANSI/ANSI
Overall Len 2.3750 60.33MM
Thread Size No.10
Shank/Pilot Dia 0.1940 4.93MM
Tap Style Cut Straight Flute
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Chamfer 2.5P
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Flutes/Inserts 4
Drill Range 0.1465 3.72MM - 0.1575 4.00MM
Length Type Standard
Cut Rating Ductile Iron, Gray Iron
Tool Material Steel
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
