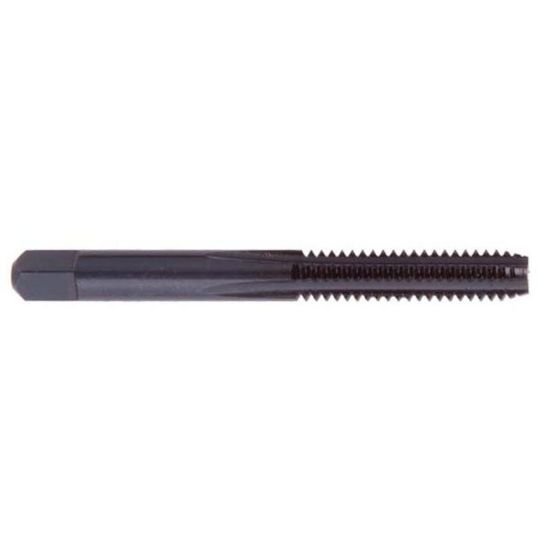

Picture of Regal 011529AS No.8-32.00TPI Cut Straight Flute Mod Bottom 2.5P HSS Steam Oxide

Regal 011529AS No.8-32.00TPI Cut Straight Flute Mod Bottom 2.5P HSS Steam Oxide

Part Number: REG011529AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176000
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL No.8x32.00TPI Cut Straight Flute Mod Bottom 2.5P HSS Steam Oxide H3/GH3 NC/UNC Steel The oxide layer produced is porous thereby retaining oil which lowers friction in ferrous applications, thus avoiding the problems of pick-up, cold welding on taps and ‘built-up edge’ on cutting edges.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Gray Iron, Ductile Iron
Coating Steam Oxide
Overall Length 2.1250 53.98MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1680 4.27MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 32.00TPI
Thread Type NC/UNC
Flute Direction RIGHT
Thread Size No.8
Thread Limit H3/GH3
Tap Style Cut Straight Flute
Tap Type Mod Bottom
Dimension Standard ANSI/ANSI
Tap Drill Range 0.1315 3.34MM - 0.1394 3.54MM
Tap Square 0.1310
Tap Chamfer 2.5P
