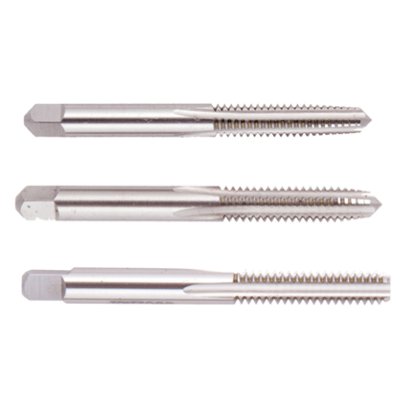

Picture of Regal 008905AS No.3-48.00TPI Set HSS Uncoated

Regal 008905AS No.3-48.00TPI Set HSS Uncoated

Part Number: REG008905AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1174975
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL No.3x48.00TPI Set HSS Uncoated H3/GH3 NF/UNF/UNEF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminium, <25HRC Steel, Brass, Stainless Steel, Grey Iron
Overall Length 1.9370 49.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.1410 3.58MM
Flutes/Inserts 3
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 48.00TPI
Thread Type NF/UNF/UNEF
Flute Direction RIGHT
Thread Size No.3
Thread Limit H3/GH3
Tap Style Set
Dimension Standard ANSI/ANSI
Tap Drill Range 0.0772 1.96MM - 0.0827 2.10MM
Tap Square 0.1100
