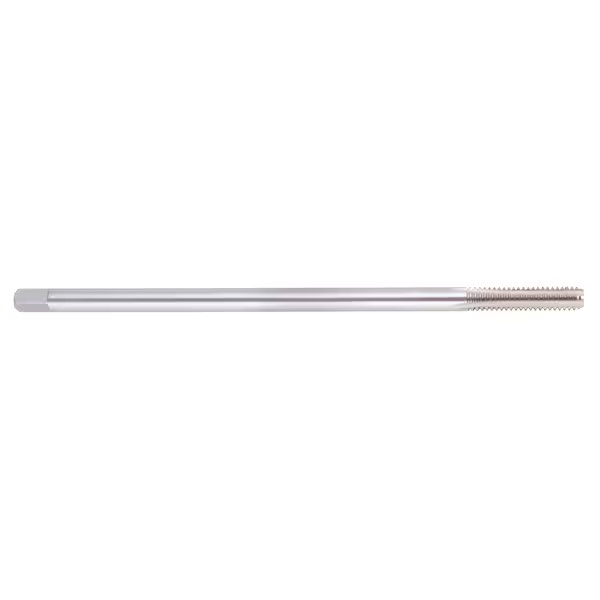

Picture of Regal 008868AS 3/8-16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated Pulley Long

Regal 008868AS 3/8-16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated Pulley Long

Part Number: REG008868AS
Looking for alternatives…
Find a drill for this tap 3/8" × 16.00TPI
% of thread 75%
Target drill —
Drill products available across the % thread range 0 drills
50% 90%
Closest drill
—
View this drill →
Heads up: the drill list shows every drill within ±5% thread of your selection (so diameters vary across that band). Pick a drill closer to the target for higher % thread, or a larger one for easier tapping at lower %.

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1175895
Vendor: Sussex Tool and Supply
$92.79

Description

REGAL 3/8"x16.00TPI Cut Spiral Point Plug 4.0P-5.0P HSS Uncoated H3/GH3 NC/UNC Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type LONG
Thread Type NC/UNC
Flute Direction RIGHT
Tap Style Cut Spiral Point
Tap Type Plug
Tap Chamfer 4.0P-5.0P
Dimensions & Sizing
Overall Length 10.0000 254.00MM
Shank/Pilot Dia 0.3810 9.68MM
Flutes/Inserts 4
Thread Pitch 16.00TPI
Thread Size 3/8"
Tap Drill Range 0.3098 7.87MM - 0.3260 8.28MM
Tap Square 0.2860
Performance & Capacity
Cut Rating Gray Iron, Aluminum, <30HRC Steel
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit H3/GH3
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
