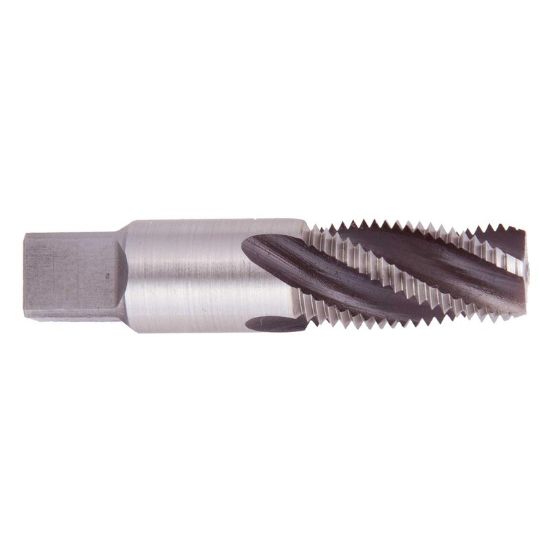

REGAL 008859AS 1/2-14.00TPI Pipe Spiral Flute Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008859AS
Delivery date: 3-5 days
$70.47

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Performance Rating General Performance
Package Size 1
Made In USA Yes
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.6870 17.45MM
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Machine Side Connection Type Tap Collet
Drill Range 17.8500 453.39MM
Thread Pitch 14.00TPI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Size 1/2"
Overall Len 3.1250 79.38MM
Tap Type Pipe
Flute Direction R - Right
Flutes/Inserts 4
Tap Square 0.5150
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
Agricultural YES
Mold Yes
