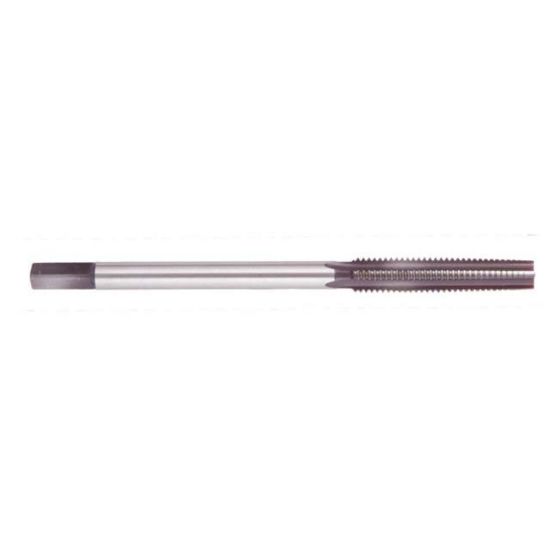

REGAL 008852AS 1/2-13.00TPI Nut Tap Nut 10.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008852AS
Delivery date: 3-5 days
$118.54

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Cut Tapping, Tapping, Nut Tapping
Performance Rating General Performance
Package Size 1
Made In USA Yes
Dimensional Specifications
Flute Direction R - Right
Length Type Standard
Tap Square 0.2750
Tap Type Nut
Dimension Standard ANSI/ANSI
Machine Side Connection Type Tap Collet
Thread Pitch 13.00TPI
Thread Type NC/UNC
Thread Limit H3/GH3
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Overall Len 7.0000 177.80MM
Flutes/Inserts 4
Shank/Pilot Dia 0.3670 9.32MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Thread Size 1/2"
Tool Material Steel
Tap Chamfer 10.0P
Tap Style Nut Tap
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
Job Shop Yes
