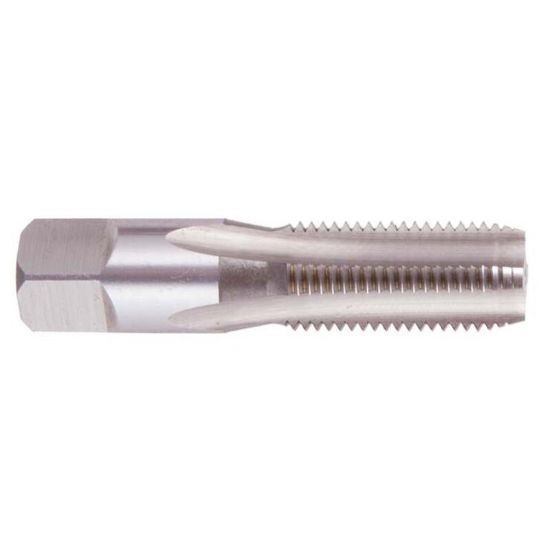

REGAL 008830AS 1-11.00TPI Pipe Spiral Flute Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008830AS
Delivery date: 3-5 days
$100.63

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Tapping, Spiral Flute Pipe
Package Size 1
Performance Rating General Performance
Made In USA Yes
Shipping State Illinois
Dimensional Specifications
Thread Type NPSM/NPSF
Tool Material Steel
Flutes/Inserts 5
Thread Size 1"
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 3.7500 95.25MM
Thread Pitch 11.00TPI
Thread Limit PIPE
Shank/Pilot Dia 1.1250 28.58MM - 1-1/8
Drill Range 1.1406 28.97MM
Tap Style Pipe Spiral Flute
Flute Direction R - Right
Tap Square 0.8430
Length Type Standard
Machine Side Connection Type Tap Collet
Tap Type Pipe
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Mold Yes
Agricultural YES
Automotive Yes
Contractor Yes
