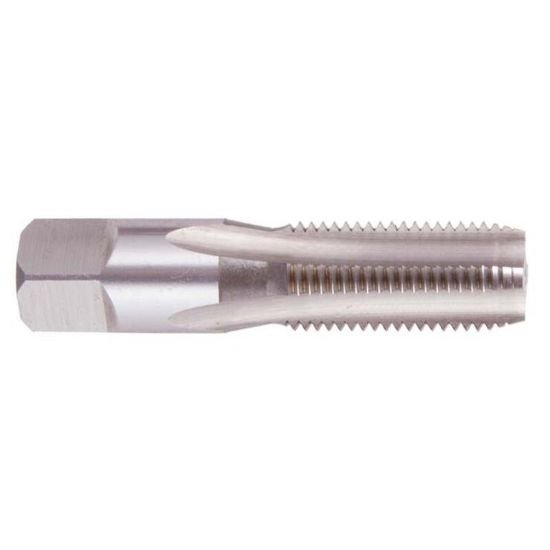

Picture of Regal 008824AS 3/8-18.00TPI Pipe Spiral Flute Pipe HSS Uncoated

Regal 008824AS 3/8-18.00TPI Pipe Spiral Flute Pipe HSS Uncoated

Part Number: REG008824AS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: 1176260
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
REGAL 3/8"x18.00TPI Pipe Spiral Flute Pipe HSS Uncoated PIPE NPSM/NPSF Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Tool Material Steel
Cutting Edge Mat HSS
Machine Side Connection Type Tap Collet
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Overall Length 2.5620 65.07MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.7000 17.78MM
Flutes/Inserts 4
Type Of Tool Tap
Length Type STANDARD
Performance Rating General Performance
Thread Pitch 18.00TPI
Thread Type NPSM/NPSF
Flute Direction RIGHT
Thread Size 3/8"
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Tap Type Pipe
Dimension Standard ANSI/ANSI
Tap Drill Range 0.5622 14.28MM
Tap Square 0.5310
