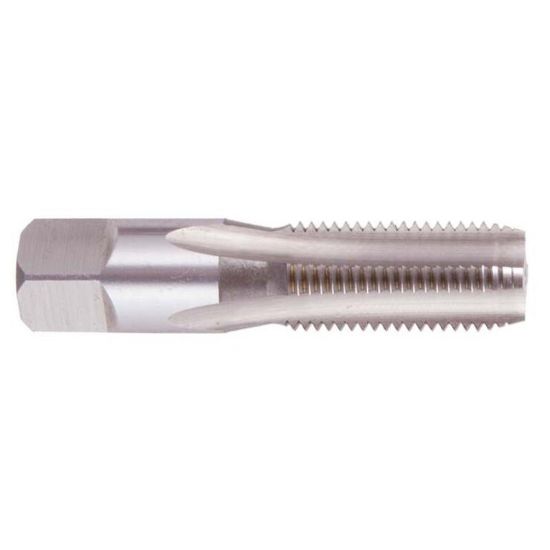

REGAL 008822AS 1/4-18.00TPI Pipe Spiral Flute Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008822AS
Delivery date: 3-5 days
$26.34

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Made In USA Yes
Dimensional Specifications
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Shank/Pilot Dia 0.5620 14.27MM
Thread Type NPSM/NPSF
Tool Material Steel
Machine Side Connection Type Tap Collet
Tap Type Pipe
Thread Pitch 18.00TPI
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Flute Direction R - Right
Length Type Standard
Overall Len 2.4370 61.90MM
Flutes/Inserts 4
Thread Size 1/4"
Drill Range 0.4378 11.12MM
Tap Square 0.4210
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
Contractor Yes
Mold Yes
Agricultural YES
Automotive Yes
