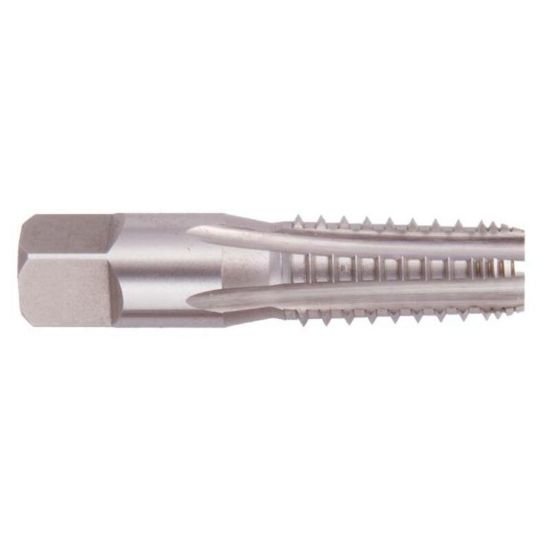

Picture of Regal 008784AS 1-1/2-11.50TPI Pipe Skip Tooth Pipe HSS Uncoated

Regal 008784AS 1-1/2-11.50TPI Pipe Skip Tooth Pipe HSS Uncoated

Part Number: REG008784AS
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$288.23
SKU: 1176228

Description

REGAL 1-1/2"x11.50TPI Pipe Skip Tooth Pipe HSS Uncoated PIPE NPT/NPTF/ANPT Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA YES
Cutter Type Tapping
Coolant Thru Non Coolant
Type Of Tool Tap
Length Type STANDARD
Thread Type NPT/NPTF/ANPT
Flute Direction RIGHT
Tap Style Pipe Skip Tooth
Tap Type Pipe
Dimensions & Sizing
Overall Length 4.2500 107.95MM
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Flutes/Inserts 5
Thread Pitch 11.50TPI
Thread Size 1-1/2"
Tap Drill Range 1.7177 43.63MM
Tap Square 1.1250
Performance & Capacity
Cut Rating Aluminum, Stainless Steel, <30HRC Steel, Ductile Iron, Gray Iron
Performance Rating General Performance
Tolerances & Accuracy
Thread Limit PIPE
Materials & Finish
Tool Material Steel
Cutting Edge Mat HSS
Standards & Identification
Dimension Standard ANSI/ANSI
