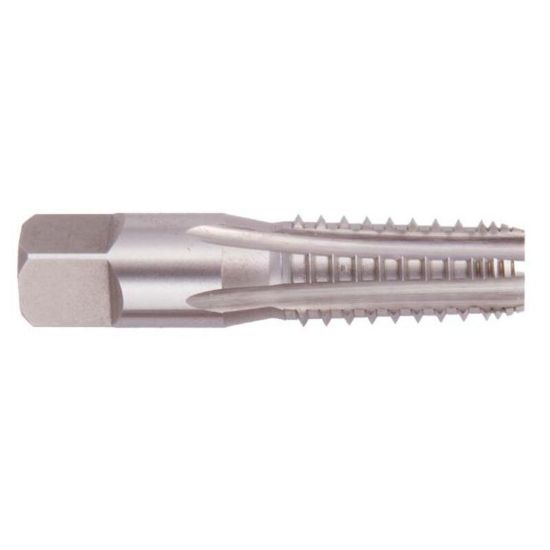

REGAL 008761AS 1/8-27.00TPI Pipe Skip Tooth Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008761AS
Delivery date: 3-5 days
$33.29

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Application Pipe Tapping, Tapping, Skip Tooth Pipe
Package Size 1
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Tool Material Steel
Flutes/Inserts 5
Drill Range 0.3319 8.43MM
Tap Style Pipe Skip Tooth
Tap Square 0.3280
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.4375 11.11MM - 7/16
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Thread Size 1/8"
Thread Pitch 27.00TPI
Tap Type Pipe
Overall Len 2.1250 53.98MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
Mold Yes
Agricultural YES
