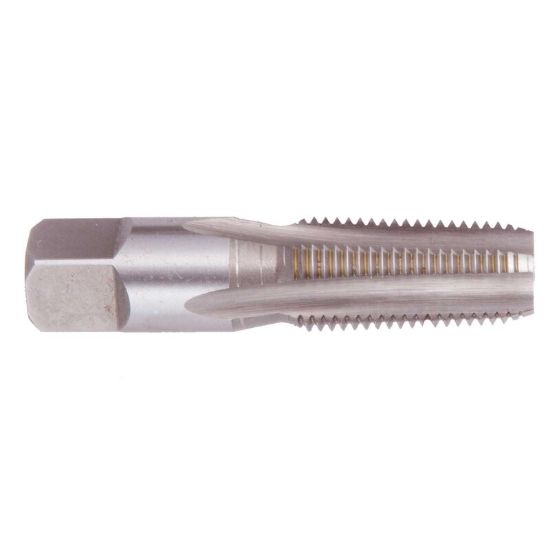

REGAL 008750AS 3/4-14.00TPI Pipe Spiral Flute Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008750AS
Delivery date: 3-5 days
$71.71

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Illinois
Application Spiral Flute Pipe, Tapping, Pipe Tapping
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Thread Limit PIPE
Overall Len 3.2500 82.55MM
Drill Range 0.9059 23.01MM
Tap Square 0.6790
Tap Style Pipe Spiral Flute
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Thread Pitch 14.00TPI
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.9060 23.01MM
Tap Type Pipe
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Steel
Flutes/Inserts 5
Thread Size 3/4"
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Automotive Yes
Contractor Yes
Job Shop Yes
Mold Yes
