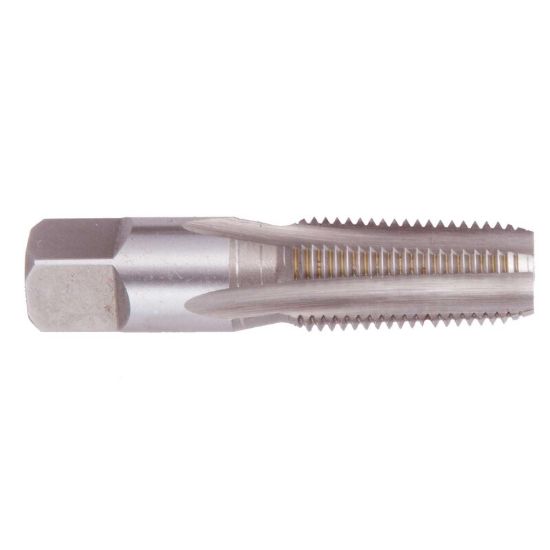

REGAL 008749AS 1/2-14.00TPI Pipe Spiral Flute Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008749AS
Delivery date: 3-5 days
$51.20

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Package Size 1
Application Tapping, Spiral Flute Pipe, Pipe Tapping
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Dimension Standard ANSI/ANSI
Shank/Pilot Dia 0.6870 17.45MM
Thread Size 1/2"
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 17.8500 453.39MM
Thread Pitch 14.00TPI
Overall Len 3.1250 79.38MM
Tap Type Pipe
Flute Direction R - Right
Flutes/Inserts 4
Tap Square 0.5150
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
Agricultural YES
Mold Yes
