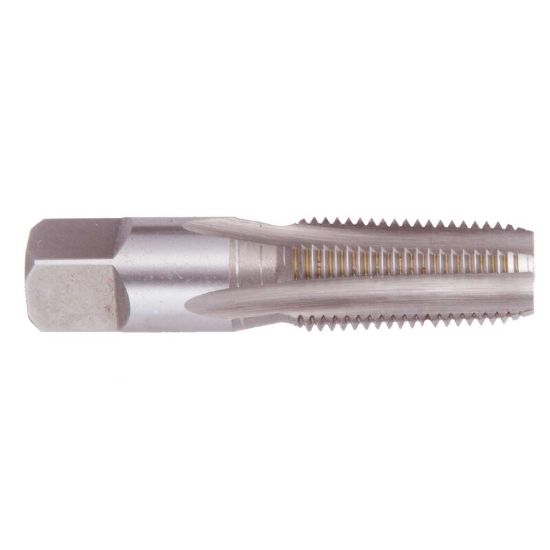

REGAL 008744AS 1/16-27.00TPI Pipe Spiral Flute Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008744AS
Delivery date: 3-5 days
$22.79

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Pipe Tapping, Tapping
Package Size 1
Shipping State Illinois
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.1250 53.98MM
Tap Square 0.2340
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Drill Range 0.2417 6.14MM
Tap Style Pipe Spiral Flute
Thread Size 1/16"
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Dimension Standard ANSI/ANSI
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Thread Pitch 27.00TPI
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Tap Type Pipe
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Agricultural YES
Automotive Yes
Job Shop Yes
Contractor Yes
Mold Yes
