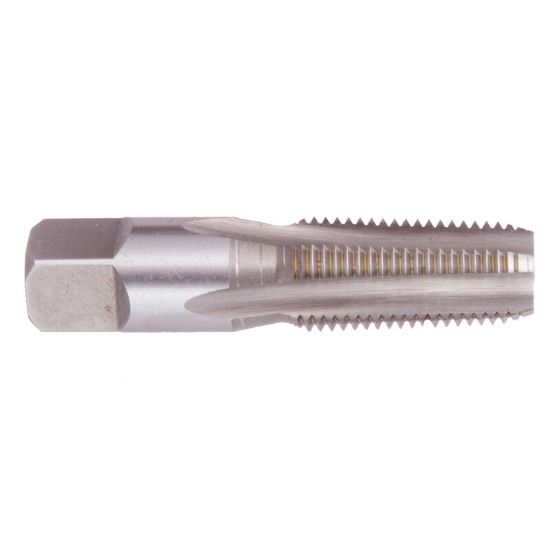

REGAL 008738AS 1/2-14.00TPI Pipe Spiral Flute Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008738AS
Delivery date: 3-5 days
$51.20

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Pipe Tapping, Spiral Flute Pipe
Performance Rating General Performance
Package Size 1
Shipping State Illinois
Made In USA Yes
Dimensional Specifications
Thread Size 1/2"
Tool Material Steel
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 4
Tap Square 0.5150
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Thread Pitch 14.00TPI
Machine Side Connection Type Tap Collet
Overall Len 3.1250 79.38MM
Drill Range 17.8500 453.39MM
Tap Type Pipe
Shank/Pilot Dia 0.6870 17.45MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
Mold Yes
Automotive Yes
Agricultural YES
