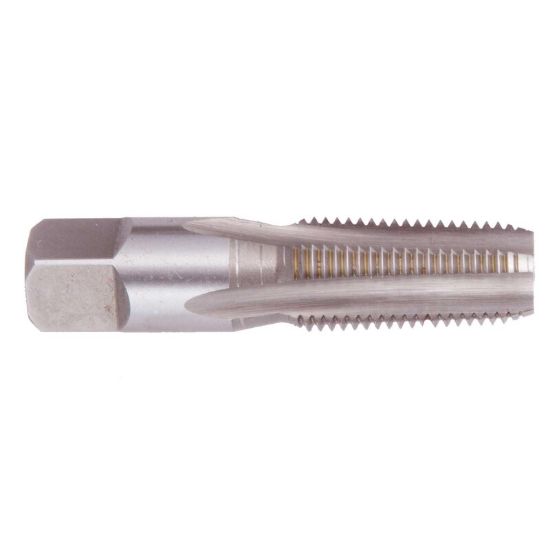

REGAL 008712AS 3/8-18.00TPI Pipe Spiral Flute Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008712AS
Delivery date: 3-5 days
$32.10

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Spiral Flute Pipe, Pipe Tapping, Tapping
Shipping State Illinois
Package Size 1
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Thread Limit PIPE
Machine Side Connection Type Tap Collet
Drill Range 0.5622 14.28MM
Tap Square 0.5310
Thread Type NPT/NPTF/ANPT
Tool Material Steel
Thread Size 3/8"
Thread Pitch 18.00TPI
Tap Style Pipe Spiral Flute
Shank/Pilot Dia 0.7000 17.78MM
Overall Len 2.5620 65.07MM
Tap Type Pipe
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Dimension Standard ANSI/ANSI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Contractor Yes
Mold Yes
Agricultural YES
