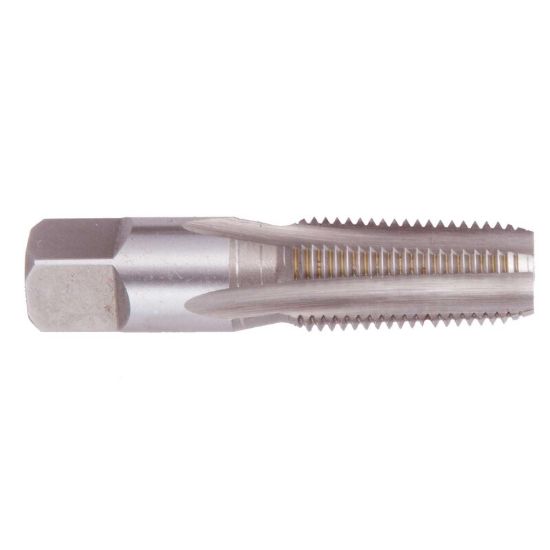

REGAL 008703AS 1/8-27.00TPI Pipe Spiral Flute Pipe HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008703AS
Delivery date: 3-5 days
$22.36

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Pipe Tapping, Tapping, Spiral Flute Pipe
Package Size 1
Performance Rating General Performance
Made In USA Yes
Shipping State Illinois
Dimensional Specifications
Tool Material Steel
Drill Range 0.3319 8.43MM
Tap Square 0.2340
Flutes/Inserts 4
Dimension Standard ANSI/ANSI
Cut Rating <30HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.1250 53.98MM
Thread Pitch 27.00TPI
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Thread Limit PIPE
Tap Style Pipe Spiral Flute
Thread Size 1/8"
Machine Side Connection Type Tap Collet
Tap Type Pipe
Thread Type NPT/NPTF/ANPT
Flute Direction R - Right
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
Contractor Yes
Mold Yes
Agricultural YES
Automotive Yes
