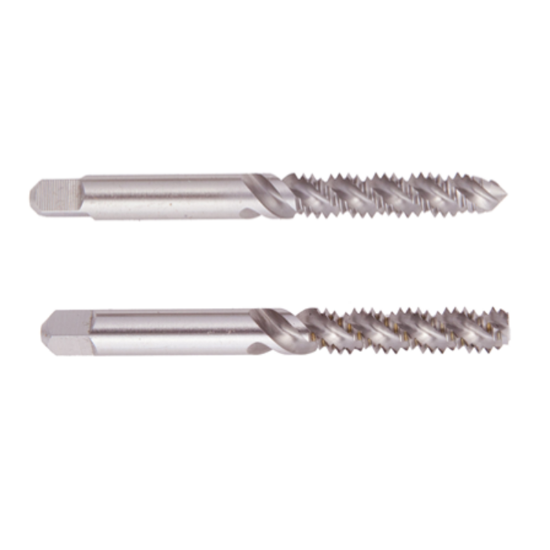

REGAL 008523AS 1/2-13.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008523AS
Delivery date: 3-5 days
$31.31

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Shipping State Illinois
Made In USA Yes
Package Size 1
Dimensional Specifications
Dimension Standard ANSI/ANSI
Thread Size 1/2"
Tool Material Steel
Shank/Pilot Dia 0.3670 9.32MM
Overall Len 3.3750 85.73MM
Drill Range 0.4201 10.67MM - 0.4398 11.17MM
Machine Side Connection Type Tap Collet
Tap Square 0.2750
Thread Type NC/UNC
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Pitch 13.00TPI
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Tap Style Cut Spiral Flute
Tap Chamfer 1.0P-2.0P
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat HSS
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
