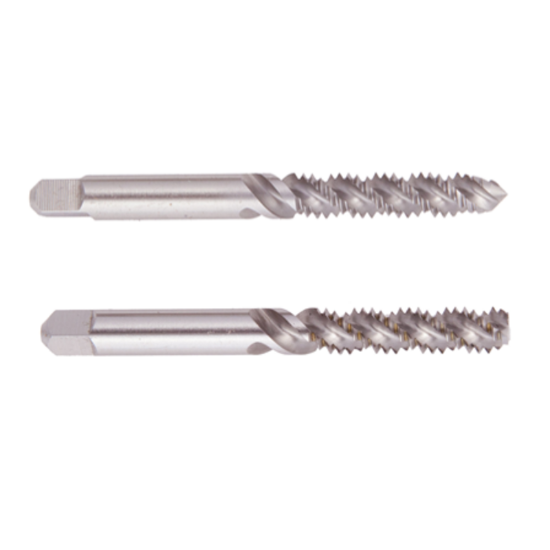

REGAL 008487AS 7/16-14.00TPI Hand Tap Plug 4.0P-5.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008487AS
Delivery date: 3-5 days
$24.14

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Through Hole Tapping, Plug Tapping, Tapping, Cut Tapping
Performance Rating General Performance
Package Size 1
Shipping State Illinois
Made In USA Yes
Dimensional Specifications
Tool Material Steel
Dimension Standard ANSI/ANSI
Tap Square 0.2420
Thread Type NC/UNC
Thread Limit H3/GH3
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Tap Style Hand Tap
Flute Direction R - Right
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Length Type Standard
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Chamfer 4.0P-5.0P
Thread Pitch 14.00TPI
Overall Len 3.1560 80.16MM
Tap Type Plug
Thread Size 7/16"
Machine Side Connection Type Tap Collet
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
