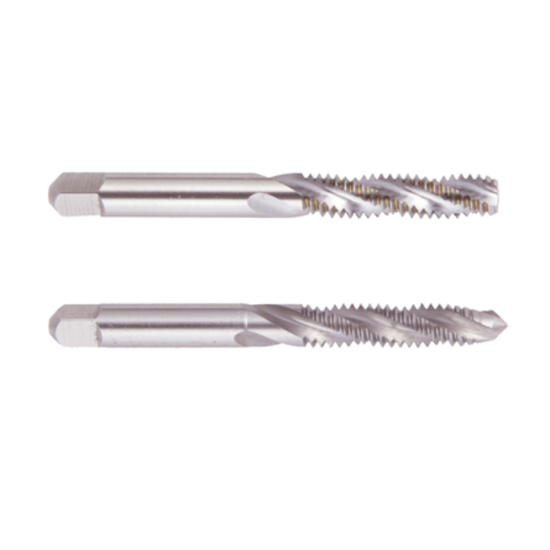

REGAL 008475AS 7/16-14.00TPI Cut Spiral Flute Bottoming 1.0P-2.0P HSS Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: REGAL
SKU: REG008475AS
Delivery date: 3-5 days
$26.00

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Bottom Tapping, Cut Tapping, Tapping
Performance Rating General Performance
Shipping State Illinois
Package Size 1
Dimensional Specifications
Thread Pitch 14.00TPI
Overall Len 3.1560 80.16MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3230 8.20MM - P
Tap Style Cut Spiral Flute
Flutes/Inserts 3
Dimension Standard ANSI/ANSI
Tap Square 0.2420
Tool Material Steel
Drill Range 0.3630 9.22MM - 0.3815 9.69MM
Thread Type NC/UNC
Cut Rating <30HRC Steel, Aluminum, Gray Iron
Tap Chamfer 1.0P-2.0P
Thread Limit H3/GH3
Flute Direction R - Right
Length Type Standard
Tap Type Bottoming
Thread Size 7/16"
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
